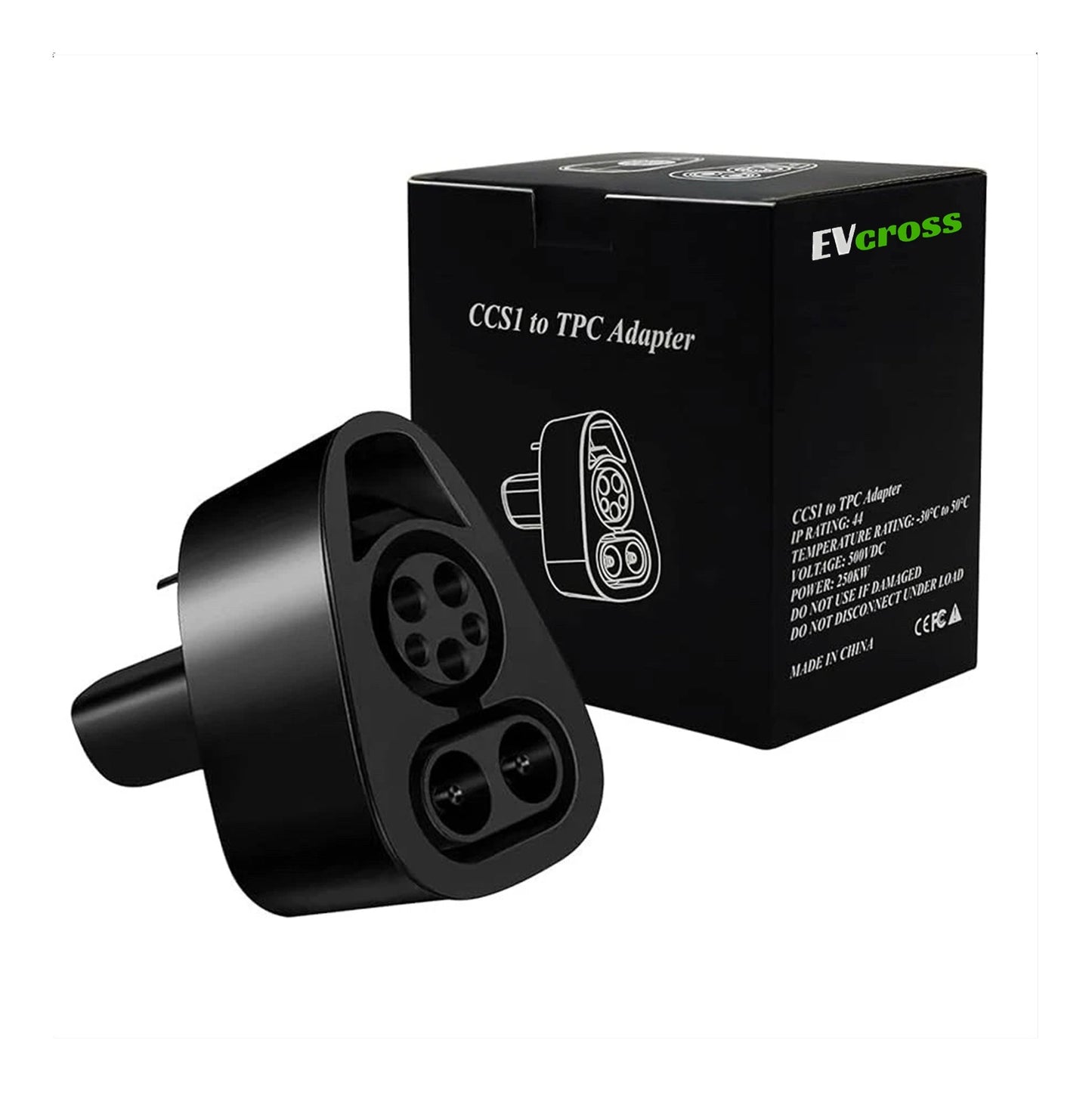

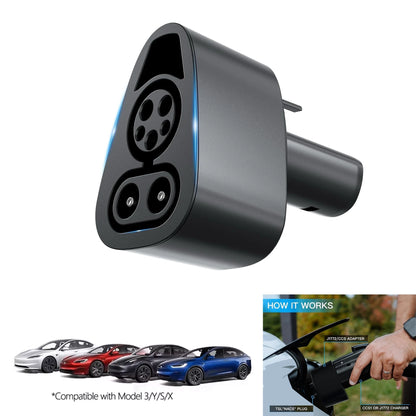

Charging Adapter — CCS1 Compatible with Tesla Model 3/Y/S/X | Fast 250 kW DC Charging
Charging Adapter — CCS1 Compatible with Tesla Model 3/Y/S/X | Fast 250 kW DC Charging
Couldn't load pickup availability
Freedom to Charge Anywhere
The world doesn’t slow down — and neither should you.
With the EVcross™ Charging Adapter, every CCS fast-charging station across America becomes your possible next stop.
Built for Explorers and Everyday Drivers
Engineered for Tesla owners who expect efficiency and reliability.
This Fast Charging adapter bridges your vehicle to the country’s largest CCS1 DC fast-charging network — Electrify America, EVgo, ChargePoint, Blink and others — delivering speeds up to 250 kW DC.
Highlights
- Unlock thousands of fast-chargers nationwide
- 20 % → 80 % in ≈ 25–40 min (conditions vary)
- Compact, heat-resistant, and travel-ready
- IP54 weather protection for rain or dust
How long does it take to charge a Tesla using the CCS Combo 1 Adapter?
Charging times depend on your Tesla model, battery level, and the output power of the CCS fast charger. Our CCS Combo 1 Adapter supports up to 250 kW of charging power, allowing for significantly faster charging compared to standard Level 2 chargers.
Here’s what you can expect under ideal conditions:
- Tesla Model 3 (Long Range): 10% to 80% in about 20–25 minutes
- Tesla Model Y (Long Range): 10% to 80% in about 25–30 minutes
- Tesla Model S / X (Long Range): 10% to 80% in about 30–35 minutes
Actual times may vary depending on station capacity, battery temperature, and current state of charge. Most third-party CCS chargers deliver slightly lower speeds than Tesla Superchargers, but the adapter still provides fast, reliable charging on the go.
With the CCS Combo 1 Adapter, you can expand your charging network and enjoy rapid power-ups almost anywhere.
Precision Engineering You Can Trust
Every curve, contact, and circuit is designed for maximum safety and power stability.
Safety Layers
- Over-voltage / over-current protection
- Thermal monitoring and auto-cutoff
- Short-circuit prevention
- Sealed IP54 housing — safe in rain & dust
Materials: high-strength ABS + PC composite tested −22 °F to 122 °F (−30 °C to +50 °C).
Compatibility
- Model 3 / Model Y — fully compatible
- Model S (2019 +) / Model X (2019 +) — compatible
Older S/X may require CCS activation via Tesla Service.
Easy to Use
- Plug the CCS1 connector into the adapter.
- Insert the adapter into your Tesla charging port.
- Start charging — no apps, no setup.
Compact enough for your glovebox; ready whenever you are.
Charge Beyond Superchargers
Freedom is more than range — it’s choice.
Superchargers are great, but they aren’t everywhere.
This adapter gives you true charging independence — anywhere, anytime.
Tech Specs
| Parameter | Details |
|---|---|
| Standard | CCS Combo 1 → NACS (North American Charging Standard -Tesla compatible format) |
| Max Power | 250 kW DC |
| Voltage Range | 300 – 1000 V DC |
| Safety | Overheat / Over-voltage / Over-current / Short-circuit |
| Weather Rating | IP54 (dust + splash resistant) |
| Operating Temp | −22 °F – 122 °F (−30 °C – +50 °C) |
| Supported Networks | Electrify America, EVgo, Blink, ChargePoint |
| Vehicle Compatibility | Tesla Model 3 / Y / S (2019 +) / X (2019 +) |
❓ FAQ
Can I use it on any CCS charger?
Yes — works with most US networks.
Is it safe for repeated fast charging?
Absolutely. Thermal and voltage protections ensure battery safety.
Can I use it in the rain?
Yes. Rated IP54 for dust and water resistance.
Do I need extra software or tools?
No. Plug and charge.
Will it replace my Supercharger use?
It complements it — expands your options.
Your Journey, Fully Charged
From daily commutes to cross-country trips, the EVcross™ Charging Adapter to CCS1 empowers you to drive beyond limitations.
Fast. Safe. Everywhere.
→ Order Now
Experience charging freedom — where technology meets mobility.
Specification
- Contact resistance: <5mΩ
- Current: 250A max
- High-concerned chemical: None
- Insulation resistance: >1000mΩ(DC500V)
- Interface: CCS1
- Item Size: 23x15x3cm
- Item Weight: 0.8
- Material: ABS
- Operating temperature: -30℃ To +50℃
- Operating voltage: 500v DC
- Out Power: 250 Kw
- Product insertion force: 45N
- Protection class: IP54
- Rated power: 250KW max
- Service life: >1000 times
- Special Features: Fast charge
- Voltage: 48 V
- color: black
How well does the connector perform?
The connector features ultra-low contact resistance of less than 5 milliohms (mΩ), ensuring a strong, efficient electrical connection and minimal energy loss during charging.
What are the key functions of this product?
This product serves as a fast-charging EV adapter, enabling seamless power transfer between your Tesla and CCS-compatible charging stations. It’s designed for convenience, safety, and compatibility with high-performance charging networks.
How powerful is it?
Engineered for high efficiency, the adapter supports a maximum rated power of 250 kW and handles up to 250 amps (A) of current. This ensures stable, fast charging performance even under demanding conditions.
